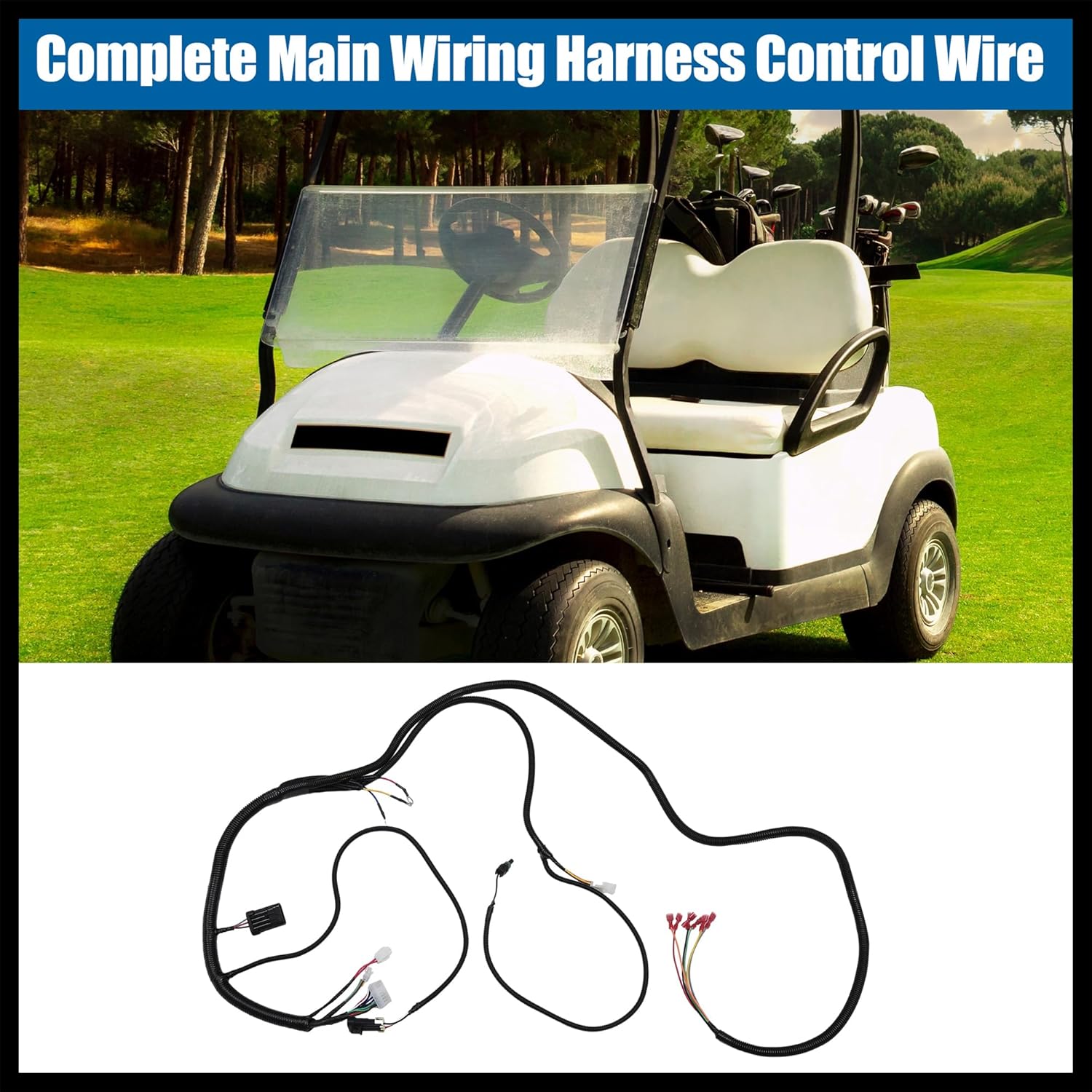

Complete Main Wiring Harness Control Wire for Golf Cart for EZGO TXT48 Freedom TXT 48V 2010-2022 Electronic Speed Control Harness W/Port Connector Replacement-

Fitment for Golf Cart:for EZGO TXT48 TXT Fleet 48V 2010-2022 for EZGO TXT48 Freedom TXT 48V 2010-2022 for EZGO TXT48 TXT 2+2 48V 2010-2022Specifications:Color: BlackMaterial: PlasticLength: 222cm / 87.40"Included 1 × 48V Complete Main Wiring Harness Control WireConnection Diagram7 Wire Connection with blade terminalsGray—To Foward&Reverse Switch(Center)Orange and Green—To Other Two Terminal(Same Row as Gray Wire)Red—To Reverse Buzzer(Positive)Black—To Reverse Buzzer(Negative)White—To Key SwitchYellow—To Key SwitchBlack w/Single Plug—To Blue Wire in the Back of 3-Pin 48 Volt Charger PortBlue w/Ring Terminal—To Negative Side of the Diode w/o the Silver StripeYellow w/Ring Terminal—To Positive Side of the Diode w/o the Silver StripeRed w/Ring Terminal—To Battery Hot Side of Solenoid16 Pin Connector—Plugs Into Controller4 Pin Connector—Programming Plug for Factory Controller (Near 16 Pin Connector: Yellow/Purple/Orange/Green)2 Pin Connector—To Tow/Run Switch( W/ 4 Pin Housing)4 Pin connector—Data port—No Need Plug (Green/Yellow/Purple/Orange)4 Wire Black Connector—To ITS throttle (White/Black/Red/Green)3 Wire Black Connector—To Factory Speed Sensor (Red/White/Black)NoticeDouble check our pictures or search online to get correct connection diagram.The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)

• [Fitmen of Main Wiring Harness Control Wire] Usde for Golf Cart, include for EZGO TXT48 TXT Fleet 48V 2010-2022 , for EZGO TXT48 Freedom TXT 48V 2010-2022 , for EZGO TXT48 TXT 2+2 48V 2010-2022. Please check car make, model, year and pin number before purchase.
• [Function for Golf Cart Main Harness] Help to maintan the electrical connections for golf cart, connect the components and let them to work efficientively.
• [Complete Wire Plug & Harness] This harness have equipped complete plug and connectors, to connect like Foward&Reverse Switch, Reverse Buzzer, Key Switch, Tow/Run Switch, Main Controller, Factory Controller, ITS throttle, Factory Speed Sensor etc. Each Plug have played it's role correctly. Please check pictures to check each plugs connection.
• [Features & Noice of Electronic Speed Control Harness] Adopt with durable plastic case and reliable plastic connector for longer service life. The Main Harness allows you to connect other 48V controllers which special for TXT48 system. Also able to upgrade for Navitas AC controller/motor combination package (All Not Include)
• [Package] Included 1 × 48V Complete Main Wiring Harness Control Wire. Please double check our pictures or search online to get correct connection diagram. For different version, There have Forward & Reverse switch wiring stay on the rear body or dash, you can keep same length or extend the length as you need when installation.
